SHRINK SLEEVE LABEL CONVERTING
SEAMING MACHINES
SLEEVE INSPECTION
SLEEVE INSPECTION
- Web speed up to 450 m/min (1500 ft/min)
- Sleeve width from 44 mm (1.75") to 305mm (12")
- Specialty sleeves down to 10mm layflat
- Manual or fully automated forming section
- Precise and reliable solvent dispensing system
- Forms and seals PVC, PETG, OPS and PLA
- Programmable rewind oscillation
- Smart HMI with recipe storage and multiple languages
- Ultrasonic sleeve-width measuring sensor provides precise lay-flat monitoring
- Lay-flat reporting and print-out for each roll
- Roll diameters up to 610mm (24")
- Ergonomic and compact design
- Sturdy and robust steel construction
- Models with no forming shoes for high speeds and not printing friction.

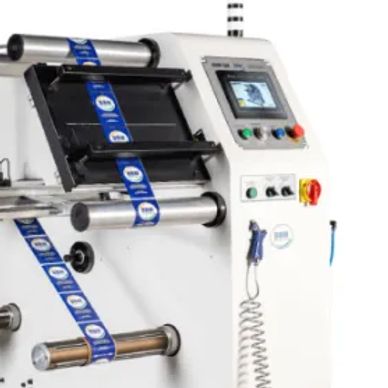

SLEEVE INSPECTION
SLEEVE INSPECTION
SLEEVE INSPECTION
- Web speed up to 500 m/min (1,640 ft/min)
- Sleeve widths up to 305mm (12")
- Programmable rewind oscillation
- Cantilevered compact & small footprint
- Ergonomic splicing table
- Reversible winding - over/under
- Available inspections for seam integrity, solvent presence and splice/flag detection - some items are optional
- Smart HMI with recipe storage and multiple languages
- Two-motor smart AC Vector drive system
- Internet-based remote diagnostic with Wi-Fi capability
- 3” (76.2mm) base shaft - Available adapter for 5” (127mm), 6” (152.4mm) and 10” (254mm)
- Options for UV Detection, Bubble Detection, Flag Detection, splice Detection, Strobe Light
SLEEVE CUTTER
SLEEVE INSPECTION
SLEEVE CUTTER
- High-Speed Cutting Performance
- Speeds up to 400 cuts per minute based on label length
- Precise servo-driven feeding system
- Intuitive HMI controls with multiple languages and recipe storage
- Easy operation for a variety of cut-to-length sleeves
- Innovative and accurate rotary cutting or guillotine design available
- Perforation features
- Optional rewind station for perforated rolls
- Exit customizable conveyor system.
